VCMA-1365-3R3-M-1A
MAZO 3.3 µH 22 A shielded power inductor
- 인덕턴스
- 3.3 µH
- Isat
- 25 A
- Idc
- 22 A
- DCR 최대
- 4.5 mΩ
- 브랜드
- MAZO
- 시리즈
- VCMA-1365
- 크기
- 13.8 × 12.9 × 6.5 mm
- 관련 애플리케이션
- 차량용 / OBC
- 특징
- AEC-Q200자기 차폐RoHS할로겐 프리
- 재고
- 제조사 재고 있음
제조사 시리즈 이미지
사양
BrandMAZO / Mazotech
SeriesVCMA-1365
Inductance L03.3 µH ±20% (1 MHz, 1.0 V)
DCR typ.3.7 mΩ
DCR max.4.5 mΩ
Heating current Idc typ.22 A
Heating current Idc max.20 A
Saturation current Isat typ.25 A
Saturation current Isat max.23 A
Rated voltage max.75 V
Package13.8 × 12.9 × 6.5 mm max
Operating temperature-55 °C to +125 °C (ambient plus self-temperature rise)
Magnetic constructionMagnetically shielded, low EMI
QualificationAEC-Q200 qualified; RoHS compliant; halogen free
Packaging500 pieces/reel
ApplicationsAutomotive applications
데이터시트 요점
- 권장 랜드 패턴

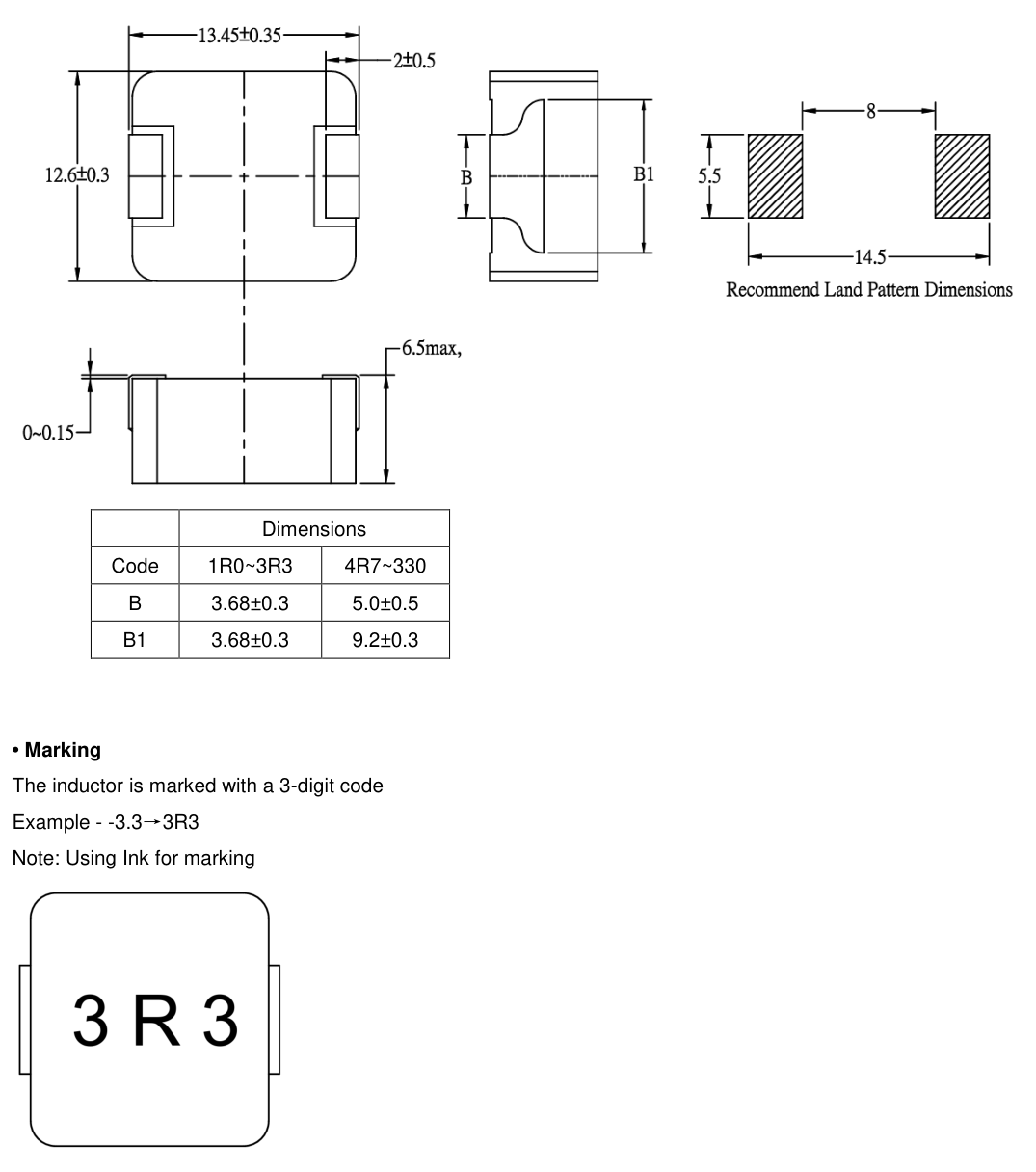

- 5.5 × 3.25 mm 패드 2개, 간격 8 mm, 전체 길이 14.5 mm
- 인덕턴스 측정 조건
- 1 MHz, 1.0 V, 25 °C
- 전류 정의
- Isat: 인덕턴스 약 30% 감소; Idc: 온도 상승 약 40 °C
- 솔더링

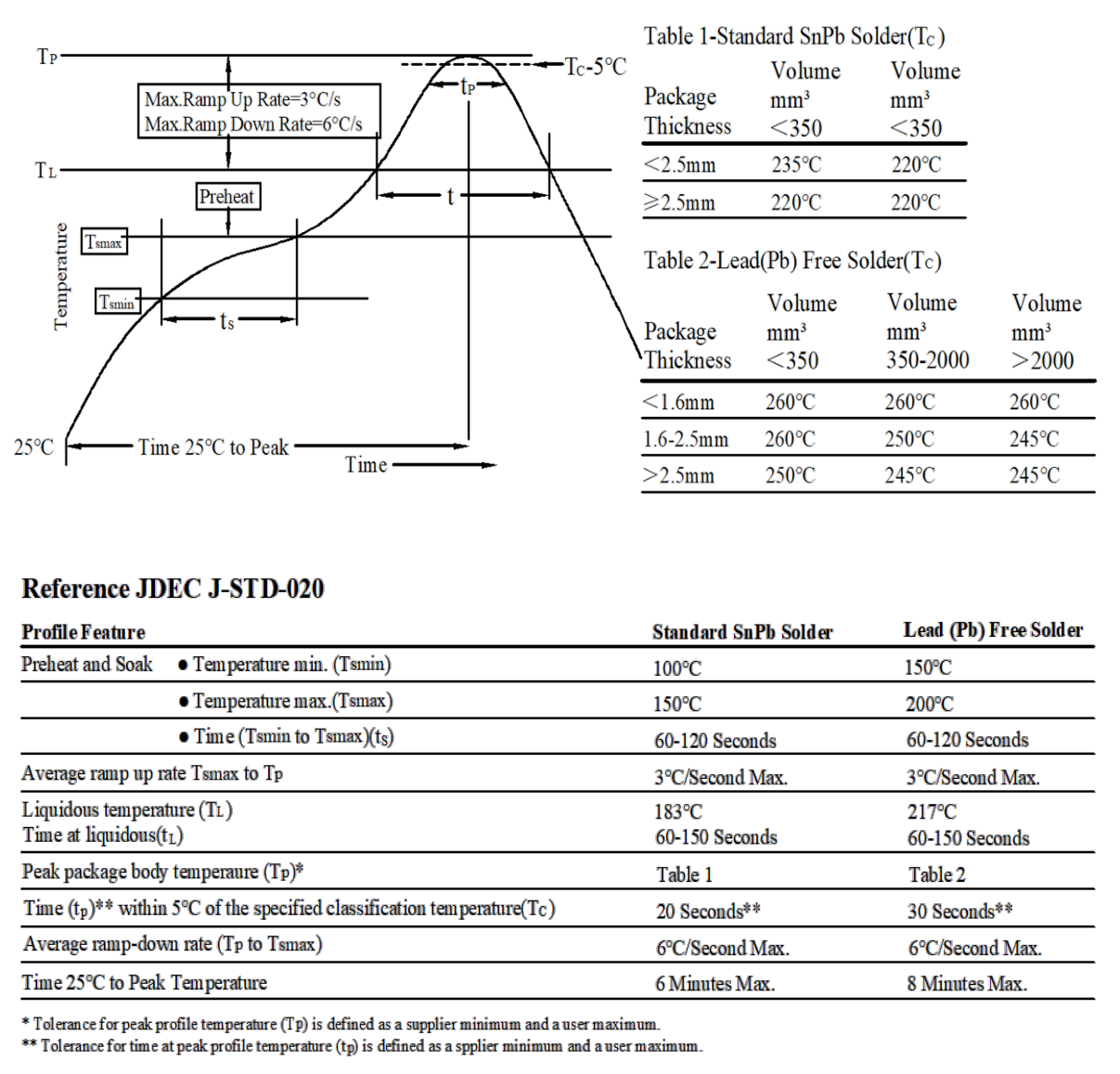

- 리플로우(J-STD-020 준수)
- 작동 온도(주위 + 자체 발열)
- -55 ~ +125 °C
- 보관 온도
- -55 ~ +125 °C
- 포장

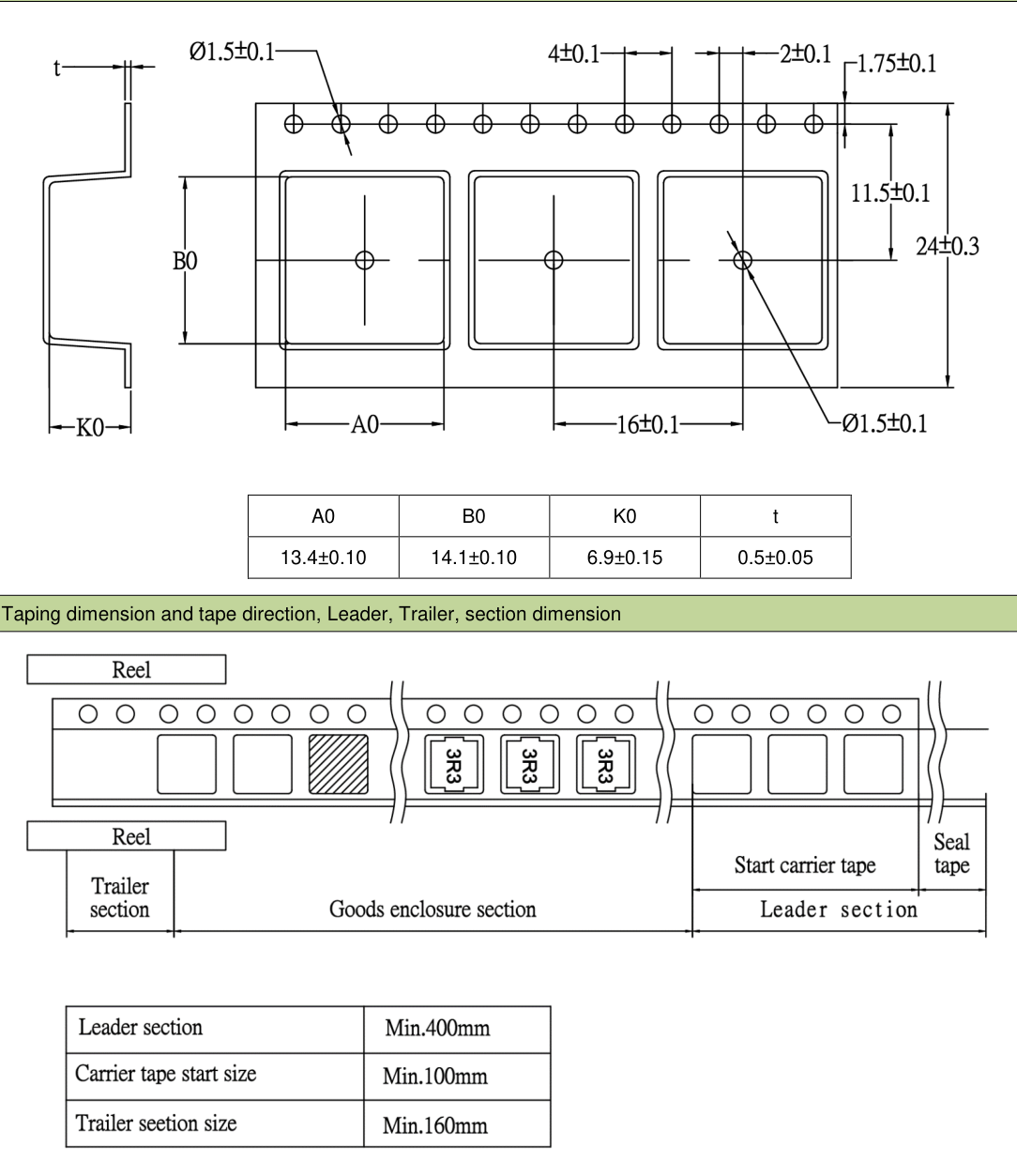

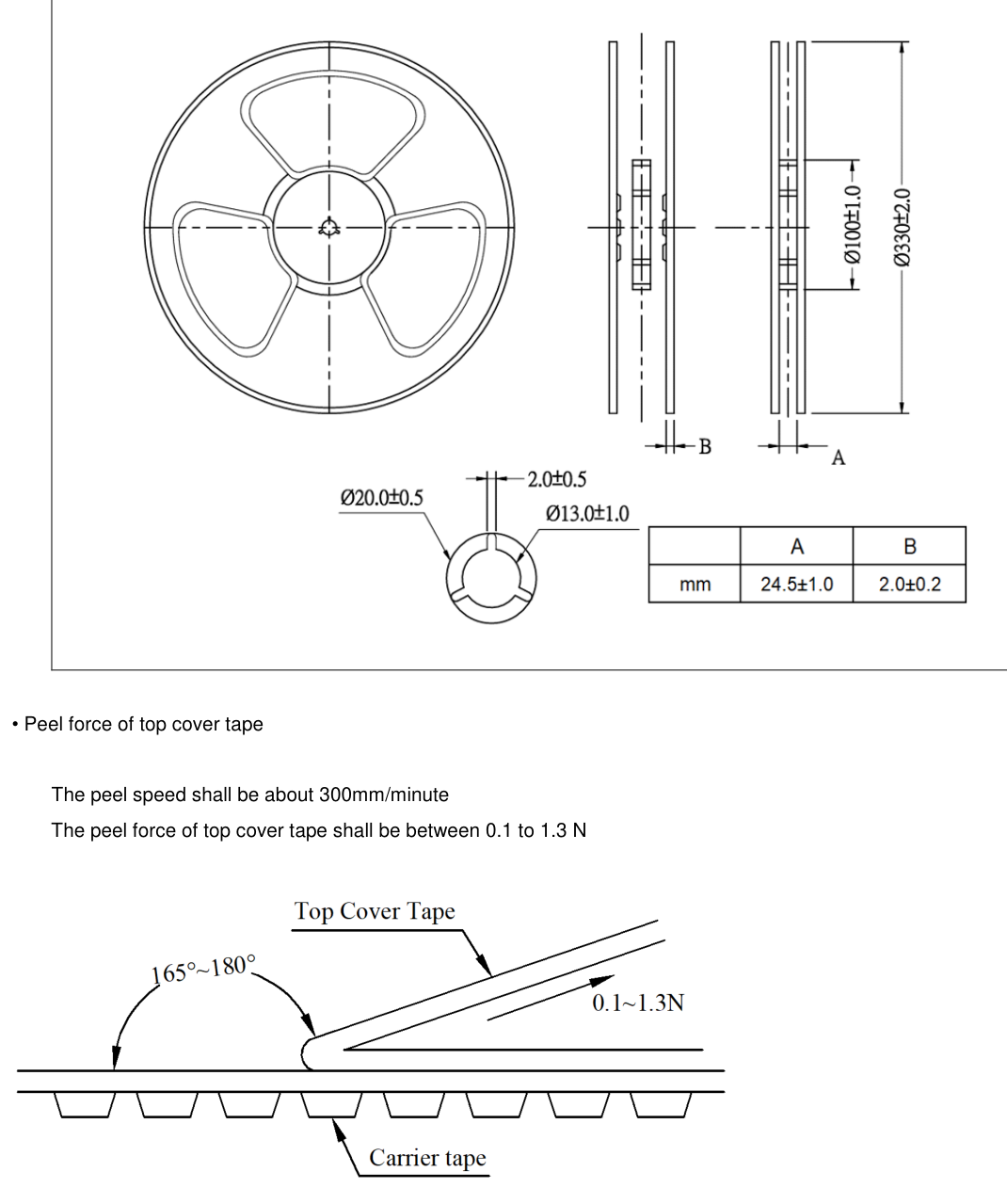

- 릴당 500개; 캐리어 테이프 포켓 13.4±0.10 × 14.1±0.10 × 6.9±0.15 mm
MAZO 데이터시트 VCMA-1365-XXX-M-1A, 개정 A3, 2025-11-26, 4페이지
특성 곡선
MAZO 데이터시트의 대표 곡선이며 참고용입니다.
솔더링 및 포장
이 부품들의 대체품
VCMA-1365-3R3-M-1A 제품은 아래 부품과 풋프린트 클래스와 공칭값이 같습니다. 교체하기 전에 패드를 확인하고 샘플로 시험하세요.
| 브랜드 | 부품 번호 | 인덕턴스 | Isat | Irms | DCR 최대 | 크기 | 풋프린트 | 권장 패드 | 이 부품 대비 VCMA-1365-3R3-M-1A |
|---|---|---|---|---|---|---|---|---|---|
| Cyntec | VCMT136E-3R3MN54MVCMT136E MN54M | 3.3 µH | 17 A · 20% | 18.3 A · 40 °C | 6 mΩ | 13.45 × 12.6 × 6.3 mm | 패드 호환 | 4.953 × 3.226 mm, 간격 8.28 mmMAZO와 근접(차이 0.547 mm) | 직접 대체 후보 |
| Bourns | SRP1265A-3R3MSRP1265A | 3.3 µH | 30 A · 20% | 18 A · 40 °C | 6.8 mΩ | 13.5 × 12.5 × 6.2 mm | 패드 호환 | 5 × 3.1 mm, 간격 8 mmMAZO와 근접(차이 0.5 mm) | 설계 여유가 있으면 대체 가능 |
| Cyntec | VCMI136E-3R3MN54MVCMI136E MN54M | 3.3 µH | 30 A · 20% | 18.6 A · 40 °C | 5.6 mΩ | 13.45 × 12.6 × 6.3 mm | 패드 호환 | 4.953 × 3.226 mm, 간격 8.28 mmMAZO와 근접(차이 0.547 mm) | 설계 여유가 있으면 대체 가능 |
| Bourns | SRP1265CC-3R3MSRP1265CC | 3.3 µH | 35 A · 30% | 22 A · 40 °C | 6.8 mΩ | 13.5 × 12.5 × 6.2 mm | 패드 호환 | 5 × 3.1 mm, 간격 8 mmMAZO와 근접(차이 0.5 mm) | 수치 열세 |
| Cyntec | CMLS136E-3R3MSCMLS136E | 3.3 µH | 42 A · 30% | 22 A · 40 °C | 4.4 mΩ | 13.45 × 12.6 × 6.3 mm | 패드 호환 | 5 × 3.3 mm, 간격 8 mmMAZO와 근접(차이 0.5 mm) | 수치 열세 |
| Würth Elektronik | 744373965033WE-LHMI 1365 | 3.3 µH | 41.5 A · 30% | 16.2 A · 40 °C | 6.8 mΩ | 13.5 × 12.5 × 6.2 mm | 패드 호환 | 5 × 3.1 mm, 간격 8 mmMAZO와 근접(차이 0.5 mm) | 수치 열세 |
| Cyntec | VCMV136E-3R3MN24MVCMV136E MN24M | 3.3 µH | 35 A · 20% | 22.9 A · 40 °C | 6.6 mΩ | 13.45 × 12.6 × 6.3 mm | 동일 풋프린트 클래스 | 5.7 × 4.335 mm, 간격 7.2 mmMAZO와 다름(차이 1.37 mm) | 수치 열세 |
| TDK | SPM12565VC-3R3M-DSPM12565VC-D | 3.3 µH | 35.4 A · 30% | 17 A · 40 °C | 5.64 mΩ | 13 × 12.5 × 6.5 mm | 동일 풋프린트 클래스 | 5 × 3.25 mm, 간격 8.2 mmMAZO와 근접(차이 0.5 mm) | 수치 열세 |
| TDK | SPM12565VT-3R3M-DSPM12565VT-D | 3.3 µH | 34.6 A · 30% | 16.8 A · 40 °C | 5.39 mΩ | 13 × 12.5 × 6.5 mm | 동일 풋프린트 클래스 | 5 × 3.25 mm, 간격 8.2 mmMAZO와 근접(차이 0.5 mm) | 수치 열세 |
| Vishay | IHLP5050FDEK3R3M01IHLP-5050FD-01 | 3.3 µH | 35 A · 20% | 18 A · 40 °C | 6.8 mΩ | 13.2 × 12.9 × 6.4 mm | 동일 풋프린트 클래스 | 4.95 × 2.945 mm, 간격 7.87 mmMAZO와 다름(차이 0.74 mm) | 수치 열세 |
| Vishay | IHLP5050FDER3R3MA1IHLP-5050FD-A1 | 3.3 µH | 35 A · 20% | 18 A · 40 °C | 6.8 mΩ | 13.2 × 12.9 × 6.4 mm | 동일 풋프린트 클래스 | 4.953 × 3.226 mm, 간격 8.28 mmMAZO와 근접(차이 0.547 mm) | 수치 열세 |
각 비교의 의미(11건)
- Cyntec VCMT136E-3R3MN54M (VCMT136E MN54M): Same inductance, 3.3 µH vs MAZO 3.3 µH. Saturation current 17 A (20% drop) vs MAZO 25 A typ. (30% drop), rated on different bases so not directly comparable; heating current 18.3 A (40 °C rise) vs MAZO 22 A typ. (40 °C rise). DCR 6 mΩ max vs MAZO 4.5 mΩ max. Body 13.45 × 12.6 × 6.3 mm vs MAZO 13.8 × 12.9 × 6.5 mm, MAZO 0.2 mm taller. Land pattern close to MAZO's: two 4.953 × 3.226 mm pads 8.28 mm apart vs MAZO two 5.5 × 3.25 mm pads 8 mm apart (pad width differs by 0.547 mm). Verdict: drop-in candidate (Idc not lower at 40 °C rise, DCR lower, less conduction loss). Before switching, verify brands define Isat/Irms differently: check the real peak current and allowed temperature rise, height clearance, the land pattern against both drawings and test samples. Both parts are AEC-Q200.
- Bourns SRP1265A-3R3M: Same inductance, 3.3 µH vs MAZO 3.3 µH. Saturation current 30 A (20% drop) vs MAZO 25 A typ. (30% drop), rated on different bases so not directly comparable; heating current 18 A (40 °C rise) vs MAZO 22 A typ. (40 °C rise). DCR 6.8 mΩ max vs MAZO 4.5 mΩ max. Body 13.5 × 12.5 × 6.2 mm vs MAZO 13.8 × 12.9 × 6.5 mm, MAZO 0.3 mm taller. Land pattern close to MAZO's: two 5 × 3.1 mm pads 8 mm apart vs MAZO two 5.5 × 3.25 mm pads 8 mm apart (pad width differs by 0.5 mm). Verdict: replaceable with design margin (Idc not lower at 40 °C rise, DCR lower, less conduction loss). Before switching, verify brands define Isat/Irms differently: check the real peak current and allowed temperature rise, height clearance, the land pattern against both drawings and test samples. Both parts are AEC-Q200.
- Cyntec VCMI136E-3R3MN54M (VCMI136E MN54M): Same inductance, 3.3 µH vs MAZO 3.3 µH. Saturation current 30 A (20% drop) vs MAZO 25 A typ. (30% drop), rated on different bases so not directly comparable; heating current 18.6 A (40 °C rise) vs MAZO 22 A typ. (40 °C rise). DCR 5.6 mΩ max vs MAZO 4.5 mΩ max. Body 13.45 × 12.6 × 6.3 mm vs MAZO 13.8 × 12.9 × 6.5 mm, MAZO 0.2 mm taller. Land pattern close to MAZO's: two 4.953 × 3.226 mm pads 8.28 mm apart vs MAZO two 5.5 × 3.25 mm pads 8 mm apart (pad width differs by 0.547 mm). Verdict: replaceable with design margin (Idc not lower at 40 °C rise, DCR lower, less conduction loss). Before switching, verify brands define Isat/Irms differently: check the real peak current and allowed temperature rise, height clearance, the land pattern against both drawings and test samples. Both parts are AEC-Q200.
- Bourns SRP1265CC-3R3M: Same inductance, 3.3 µH vs MAZO 3.3 µH. Saturation current 35 A (30% drop) vs MAZO 25 A typ. (30% drop); heating current 22 A (40 °C rise) vs MAZO 22 A typ. (40 °C rise). DCR 6.8 mΩ max vs MAZO 4.5 mΩ max. Body 13.5 × 12.5 × 6.2 mm vs MAZO 13.8 × 12.9 × 6.5 mm, MAZO 0.3 mm taller. Land pattern close to MAZO's: two 5 × 3.1 mm pads 8 mm apart vs MAZO two 5.5 × 3.25 mm pads 8 mm apart (pad width differs by 0.5 mm). Verdict: MAZO figures are weaker, consider only with ample margin (MAZO Isat about 29% lower, Idc not lower at 40 °C rise, DCR lower, less conduction loss). Before switching, verify brands define Isat/Irms differently: check the real peak current and allowed temperature rise, height clearance, the land pattern against both drawings and test samples.
- Cyntec CMLS136E-3R3MS: Same inductance, 3.3 µH vs MAZO 3.3 µH. Saturation current 42 A (30% drop) vs MAZO 25 A typ. (30% drop); heating current 22 A (40 °C rise) vs MAZO 22 A typ. (40 °C rise). DCR 4.4 mΩ max vs MAZO 4.5 mΩ max. Body 13.45 × 12.6 × 6.3 mm vs MAZO 13.8 × 12.9 × 6.5 mm, MAZO 0.2 mm taller. Land pattern close to MAZO's: two 5 × 3.3 mm pads 8 mm apart vs MAZO two 5.5 × 3.25 mm pads 8 mm apart (pad width differs by 0.5 mm). Verdict: MAZO figures are weaker, consider only with ample margin (MAZO Isat about 40% lower, Idc not lower at 40 °C rise, DCR slightly higher). Before switching, verify brands define Isat/Irms differently: check the real peak current and allowed temperature rise, height clearance, the land pattern against both drawings and test samples.
- Würth Elektronik 744373965033 (WE-LHMI 1365): Same inductance, 3.3 µH vs MAZO 3.3 µH. Saturation current 41.5 A (30% drop) vs MAZO 25 A typ. (30% drop); heating current 16.2 A (40 °C rise) vs MAZO 22 A typ. (40 °C rise). DCR 6.8 mΩ max vs MAZO 4.5 mΩ max. Body 13.5 × 12.5 × 6.2 mm vs MAZO 13.8 × 12.9 × 6.5 mm, MAZO 0.3 mm taller. Land pattern close to MAZO's: two 5 × 3.1 mm pads 8 mm apart vs MAZO two 5.5 × 3.25 mm pads 8 mm apart (pad width differs by 0.5 mm). Verdict: MAZO figures are weaker, consider only with ample margin (MAZO Isat about 40% lower, Idc not lower at 40 °C rise, DCR lower, less conduction loss). Before switching, verify brands define Isat/Irms differently: check the real peak current and allowed temperature rise, height clearance, the land pattern against both drawings and test samples.
- Cyntec VCMV136E-3R3MN24M (VCMV136E MN24M): Same inductance, 3.3 µH vs MAZO 3.3 µH. Saturation current 35 A (20% drop) vs MAZO 25 A typ. (30% drop), rated on different bases so not directly comparable; heating current 22.9 A (40 °C rise) vs MAZO 22 A typ. (40 °C rise). DCR 6.6 mΩ max vs MAZO 4.5 mΩ max. Body 13.45 × 12.6 × 6.3 mm vs MAZO 13.8 × 12.9 × 6.5 mm, MAZO 0.2 mm taller. Land pattern differs from MAZO's: two 5.7 × 4.335 mm pads 7.2 mm apart vs MAZO two 5.5 × 3.25 mm pads 8 mm apart (overall span differs by 1.37 mm). Verdict: MAZO figures are weaker, consider only with ample margin (Idc about 4% lower at 40 °C rise, DCR lower, less conduction loss). Before switching, verify brands define Isat/Irms differently: check the real peak current and allowed temperature rise, height clearance, the land pattern against both drawings and test samples. Both parts are AEC-Q200.
- TDK SPM12565VC-3R3M-D (SPM12565VC-D): Same inductance, 3.3 µH vs MAZO 3.3 µH. Saturation current 35.4 A (30% drop) vs MAZO 25 A typ. (30% drop); heating current 17 A (40 °C rise) vs MAZO 22 A typ. (40 °C rise). DCR 5.64 mΩ max vs MAZO 4.5 mΩ max. Body 13 × 12.5 × 6.5 mm vs MAZO 13.8 × 12.9 × 6.5 mm. Land pattern close to MAZO's: two 5 × 3.25 mm pads 8.2 mm apart vs MAZO two 5.5 × 3.25 mm pads 8 mm apart (pad width differs by 0.5 mm). Verdict: MAZO figures are weaker, consider only with ample margin (MAZO Isat about 29% lower, Idc not lower at 40 °C rise, DCR lower, less conduction loss). Before switching, verify brands define Isat/Irms differently: check the real peak current and allowed temperature rise, the land pattern against both drawings and test samples. Both parts are AEC-Q200.
- TDK SPM12565VT-3R3M-D (SPM12565VT-D): Same inductance, 3.3 µH vs MAZO 3.3 µH. Saturation current 34.6 A (30% drop) vs MAZO 25 A typ. (30% drop); heating current 16.8 A (40 °C rise) vs MAZO 22 A typ. (40 °C rise). DCR 5.39 mΩ max vs MAZO 4.5 mΩ max. Body 13 × 12.5 × 6.5 mm vs MAZO 13.8 × 12.9 × 6.5 mm. Land pattern close to MAZO's: two 5 × 3.25 mm pads 8.2 mm apart vs MAZO two 5.5 × 3.25 mm pads 8 mm apart (pad width differs by 0.5 mm). Verdict: MAZO figures are weaker, consider only with ample margin (MAZO Isat about 28% lower, Idc not lower at 40 °C rise, DCR lower, less conduction loss). Before switching, verify brands define Isat/Irms differently: check the real peak current and allowed temperature rise, the land pattern against both drawings and test samples. Both parts are AEC-Q200.
- Vishay IHLP5050FDEK3R3M01 (IHLP-5050FD-01): Same inductance, 3.3 µH vs MAZO 3.3 µH. Saturation current 35 A (20% drop) vs MAZO 25 A typ. (30% drop), rated on different bases so not directly comparable; heating current 18 A (40 °C rise) vs MAZO 22 A typ. (40 °C rise). DCR 6.8 mΩ max vs MAZO 4.5 mΩ max. Body 13.2 × 12.9 × 6.4 mm vs MAZO 13.8 × 12.9 × 6.5 mm, MAZO 0.1 mm taller. Land pattern differs from MAZO's: two 4.95 × 2.945 mm pads 7.87 mm apart vs MAZO two 5.5 × 3.25 mm pads 8 mm apart (overall span differs by 0.74 mm). Verdict: MAZO figures are weaker, consider only with ample margin (Idc not lower at 40 °C rise, DCR lower, less conduction loss). Before switching, verify brands define Isat/Irms differently: check the real peak current and allowed temperature rise, height clearance, the land pattern against both drawings and test samples.
- Vishay IHLP5050FDER3R3MA1 (IHLP-5050FD-A1): Same inductance, 3.3 µH vs MAZO 3.3 µH. Saturation current 35 A (20% drop) vs MAZO 25 A typ. (30% drop), rated on different bases so not directly comparable; heating current 18 A (40 °C rise) vs MAZO 22 A typ. (40 °C rise). DCR 6.8 mΩ max vs MAZO 4.5 mΩ max. Body 13.2 × 12.9 × 6.4 mm vs MAZO 13.8 × 12.9 × 6.5 mm, MAZO 0.1 mm taller. Land pattern close to MAZO's: two 4.953 × 3.226 mm pads 8.28 mm apart vs MAZO two 5.5 × 3.25 mm pads 8 mm apart (pad width differs by 0.547 mm). Verdict: MAZO figures are weaker, consider only with ample margin (Idc not lower at 40 °C rise, DCR lower, less conduction loss). Before switching, verify brands define Isat/Irms differently: check the real peak current and allowed temperature rise, height clearance, the land pattern against both drawings and test samples. Both parts are AEC-Q200.
수치 비교 방법
Isat와 Irms는 각 데이터시트의 정의를 따르며 기준을 수치 뒤에 표시합니다. MAZO 수치는 사양표의 대표값입니다.
권장 패드: 각 데이터시트가 권장하는 패드 폭 × 패드 길이와 두 패드 사이 간격을 MAZO와 비교했습니다.
같은 풋프린트의 다른 값
본체 크기가 같은 13.8 × 12.9 mm 부품을 인덕턴스 순으로 표시합니다. 교체 전에 높이를 확인하세요.
| 부품 번호 | 인덕턴스 | Isat | Idc | DCR 최대 | 높이 | 단가 |
|---|---|---|---|---|---|---|
| VCMA-1350-R82-M-1A | 0.82 µH | 45 A | 31 A | 1.6 mΩ | 5 mm | $0.75 |
| VCMA-1350-1R0-M-1A | 1 µH | 39.5 A | 26 A | 2 mΩ | 5 mm | $0.75 |
| VCMA-1365-1R0-M-1A | 1 µH | 43 A | 38 A | 1.9 mΩ | 6.5 mm | $0.79 |
| VCMA-1350-1R5-M-1A | 1.5 µH | 39 A | 23 A | 3.1 mΩ | 5 mm | $0.75 |
| VCMA-1365-1R5-M-1A | 1.5 µH | 40 A | 35 A | 2.5 mΩ | 6.5 mm | $0.79 |
| VCMA-1350-2R2-M-1A | 2.2 µH | 28 A | 21 A | 4.6 mΩ | 5 mm | $0.72 |
| VCMA-1365-2R2-M-1A | 2.2 µH | 35 A | 30 A | 3.2 mΩ | 6.5 mm | $0.79 |
| VCMA-1350-3R3-M-1A | 3.3 µH | 24 A | 16 A | 6.9 mΩ | 5 mm | $0.75 |
| VCMA-1350-4R7-M-1A | 4.7 µH | 20.5 A | 14 A | 9.2 mΩ | 5 mm | $0.75 |
| VCMA-1365-4R7-M-1A | 4.7 µH | 24 A | 20 A | 6.9 mΩ | 6.5 mm | $0.79 |
| VCMA-1350-5R6-M-1A | 5.6 µH | 20 A | 12 A | 12 mΩ | 5 mm | $0.75 |
| VCMA-1365-5R6-M-1A | 5.6 µH | 22 A | 18 A | 8.2 mΩ | 6.5 mm | $0.90 |
같은 인덕턴스의 다른 크기
작은 순. 본체가 클수록 대체로 전류 여유가 큽니다. 패드는 다릅니다.
| 부품 번호 | 인덕턴스 | Isat | Idc | DCR 최대 | 본체 크기 | 단가 |
|---|---|---|---|---|---|---|
| VCMA-0420-3R3-M-1A | 3.3 µH | 4.5 A | 3.3 A | 82 mΩ | 4.75 × 4.45 × 2 mm | $0.23 |
| VCMA-0530-3R3-M-1A | 3.3 µH | 7.5 A | 4.8 A | 37 mΩ | 5.7 × 5.4 × 3 mm | $0.27 |
| VCMA-1040-3R3-M-1A | 3.3 µH | 17 A | 11.5 A | 11.8 mΩ | 11.5 × 10.3 × 4 mm | $0.55 |
구매
단가 · USD / 개$0.795개 기준
수량별 가격구간을 선택하면 수량이 설정됩니다.
| 수량 | 단가 | 소계 |
|---|---|---|
| 5–49 | $0.79 | $3.95 |
| 50–149 | $0.57 | $28.50 |
| 150–499 | $0.461 | $69.15 |
| 500–2999 | $0.356 | $178.00 |
상품 소계$3.95품목 금액만 포함되며 포장, 취급, 배송, 관세, 세금은 제외됩니다. 포장 및 취급 비용은 장바구니에 표시됩니다. 배송, 관세, 세금은 별도로 확정됩니다.
- 최소 주문 수량
- 5개
- 주문 단위
- 1개
- 가용성
- 제조사 재고 있음
- 발송 준비
- 2일
중국에서 발송배송 방법: DHL Express배송 국가를 선택하면 예상 운송 기간이 표시됩니다.
발송 준비 기간과 운송 기간은 별도로 계산합니다. 도착일은 예상이며 실제 운송 경로와 주문 배송 조회 정보를 따릅니다.
포장선택한 수량 기준
- 풀 릴 표준 수량
- 500개
- 포장 형태
- 컷 테이프 · 5개
- 컷 테이프 요금
- 없음
- 온라인 주문 한도
- 2999개
포장 및 취급 비용은 장바구니에 표시됩니다. 배송비, 관세, 세금은 별도로 확정됩니다.
이 수량을 장바구니에 담아 주문 비용과 이용 가능한 결제 단계를 확인하세요. 요청 시 로그인해 주세요.
선정 및 용도
선정 방법
Choosing inductance
L ≈ (Vin − Vout) × Vout ÷ (Vin × fsw × ΔI), with ΔI at 20–40% of the output current. The series covers 1.0–33 µH in one body, so changing the value needs no new layout.
Saturation current Isat
the current at which inductance falls about 30%; keep the peak current below it.
Heating current Idc
the current that raises the part about 40 °C above a 25 °C ambient; ambient plus rise stays within 125 °C.
DC resistance
sets the conduction loss. Typical 1.65–39 mΩ across the series; use the maximum for loss budgets.
Rated voltage
75 V maximum; check it against the input voltage.
Height
Max 6.5 mm. Height-limited: VCMA-1350 (5.0 mm) on the same land pattern.
