**Short answer:** XAL4020-221MEC is a Coilcraft XAL4020-series shielded power inductor: 0.22 µH ±20 %, DCR 5.81 mΩ typical / 6.40 mΩ maximum, Isat 18.7 A (30 % inductance drop, typical), Irms 12.0 A (20 °C rise) / 16.8 A (40 °C rise), on a 4.0 × 4.0 mm footprint with 2.1 mm maximum height. All values below are taken from Coilcraft's XAL40xx datasheet (Document 806, revised 02/25/26). Check that document before ordering; it is the reference, not this page.

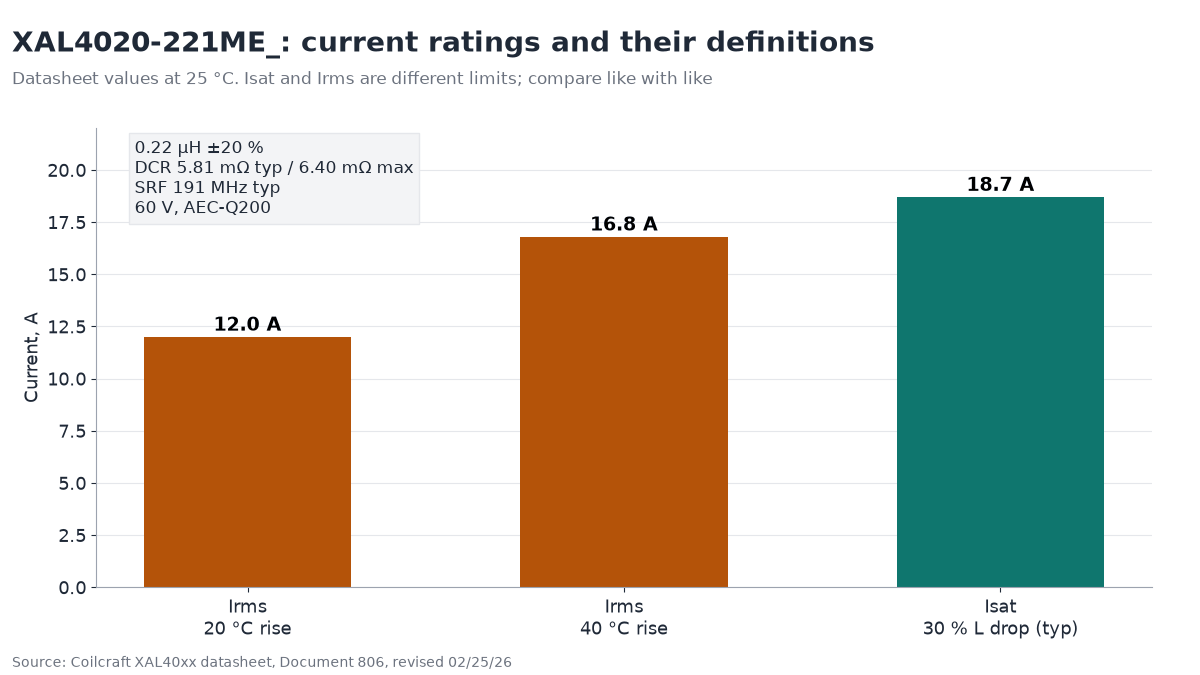

Key datasheet values (Coilcraft Document 806, revised 02/25/26)
| Parameter | XAL4020-221ME_ | Condition / footnote |
|---|---|---|
| Inductance | 0.22 µH ±20 % | Tested at 1 MHz, 0.1 Vrms, 0 Adc |
| DCR | 5.81 mΩ typ, 6.40 mΩ max | Measured on a micro-ohmmeter |
| SRF | 191 MHz typ | |
| Isat | 18.7 A | DC current at 25 °C causing a 30 % (typ) inductance drop |
| Irms | 12.0 A (20 °C rise), 16.8 A (40 °C rise) | Current causing that temperature rise from 25 °C ambient; reference only, verify in application |
| Operating voltage | 60 V | Footnote: capability varies by part number |
| Ambient temperature | –40 °C to +125 °C with (40 °C rise) Irms current | Maximum part temperature +165 °C (ambient + rise) |
| Size | 4.0 ±0.3 × 4.0 ±0.3 mm (4.3 mm max), height 2.1 mm max | Weight 0.17–0.18 g |
| Qualification | AEC-Q200 qualified; RoHS compliant, halogen free | |
| MSL | 1 | Unlimited floor life at < 30 °C / 85 % RH |
Electrical specifications are at 25 °C.

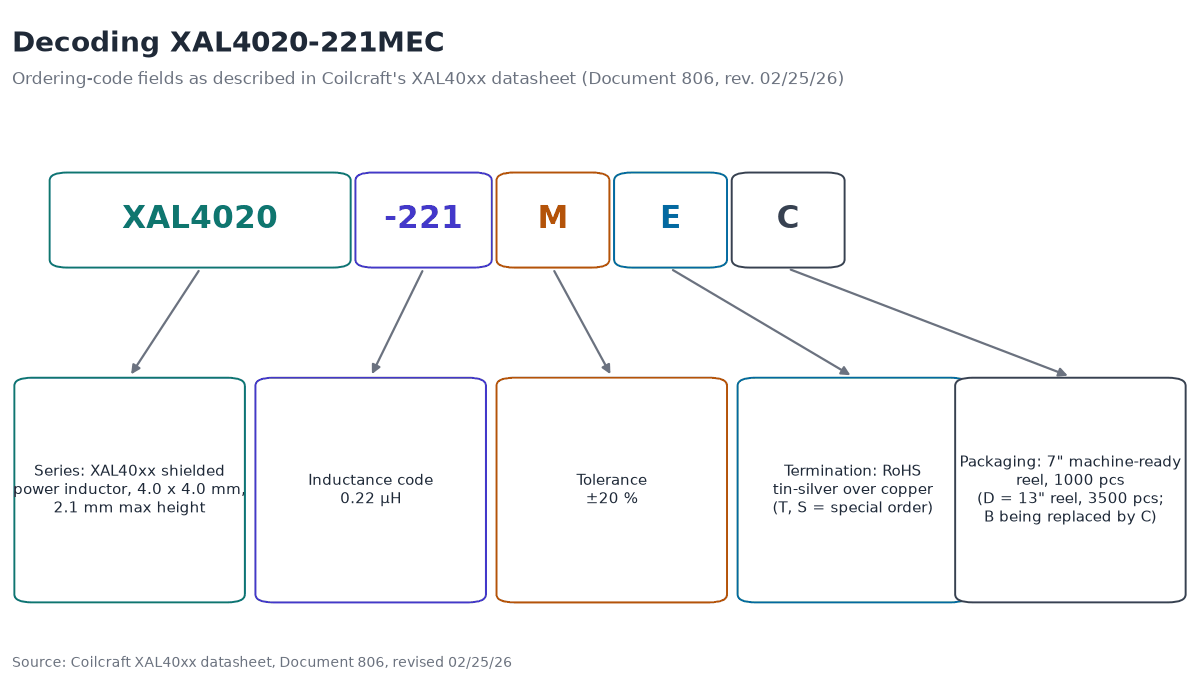

Decoding the suffix "MEC"
Coilcraft's ordering note says to specify termination and packaging codes. In `XAL4020-221MEC`, **E** is the termination (RoHS tin-silver over copper) and **C** is the packaging: a 7″ machine-ready reel (EIA-481 embossed plastic tape). XAL4020 ships 1000 per 7″ reel or 3500 per 13″ reel (D = 13″ reel, factory order only). The datasheet also says **B** (less than full reel) is being replaced: change the last letter from B to C. So `XAL4020-221MEB` and `XAL4020-221MEC` are the same electrical part with different packaging. T and S are special-order terminations (tin-silver-copper; non-RoHS tin-lead).
Things to compare like for like
- **Isat definitions differ between makers.** Coilcraft uses a 30 % inductance drop; other datasheets may use 20 % or 30 %. Compare at the same definition.
- **Irms is thermal, not an absolute rating.** Coilcraft notes temperature rise depends on PCB land pattern, trace size, airflow and nearby parts.
- **Inductance test frequency differs.** Coilcraft tests at 1 MHz, 0.1 Vrms. A part tested at 100 kHz or 1 V is not directly comparable.
- **Land pattern.** Use the recommended land pattern on page 4 of the Coilcraft datasheet.
Existing comparison on this community
MST Engineering has already published a datasheet comparison with a MAZO part: [Can VCMA-0420-R22-M-1A replace XAL4020-221MEC? A datasheet comparison](/community/t/3-can-vcma-0420-r22-m-1a-replace-xal4020-221mec-a-datasheet-co). Its conclusion is that interchangeability has **not** been established. The two share a nominal 0.22 µH, but their test conditions, rated voltage (60 V vs 40 V), maximum part temperature (165 °C vs 125 °C) and land patterns differ. Treat [VCMA-0420-R22-M-1A](/store/mazo-power-inductors/VCMA-0420-R22-M-1A) as a candidate to verify in your design, not as a drop-in.
What to send in an RFQ
1. Full part number including the suffix (e.g. XAL4020-221MEC), quantity and whether cut tape or full reel is acceptable.
2. Genuine Coilcraft only, or open to an alternative for evaluation.
3. If an alternative is acceptable: switching frequency, peak and RMS current, voltage, ambient temperature, and the land pattern you must keep.
*Coilcraft is a trademark of Coilcraft, Inc. Names and part numbers are used for identification only. MST is not affiliated with or endorsed by Coilcraft.*
