Neuro Box E5200
Industrial AI box that connects to your equipment out of the box. NVIDIA Orin, 16 GB, up to 100 TOPS, built-in 10.1" touch screen. Order bare, or with SECS/GEM and an offline MST assistant preinstalled.
- 100 TOPS INT8 · 50 TFLOPS FP16
- NVIDIA Orin · 16 GB
- 10.1" touch screen built in
- -20 °C to +85 °C
- 10–25 W, up to 45 W
- Neuro Box E5200 with 10.1" touch screen
- 256 GB NVMe SSD fitted
- Linux with CUDA, TensorRT, OpenCV and ROS
- 12 V / 5 A adapter, 1-year warranty
- MOQ
- Minimum order: 1 unit
- ETD
- Dispatched within 2 weeks of order confirmation; transit time depends on the destination
Every configuration ships from Singapore with a USD invoice and a 1-year warranty.
Why not a generic Jetson box
Same-class Orin boxes ship with an operating system and leave the equipment connection, the models and the operator screen to you. The E5200 arrives with the touch screen built in and, from the Smart gateway edition up, with SECS/GEM and an offline assistant already running. Nothing leaves your site.

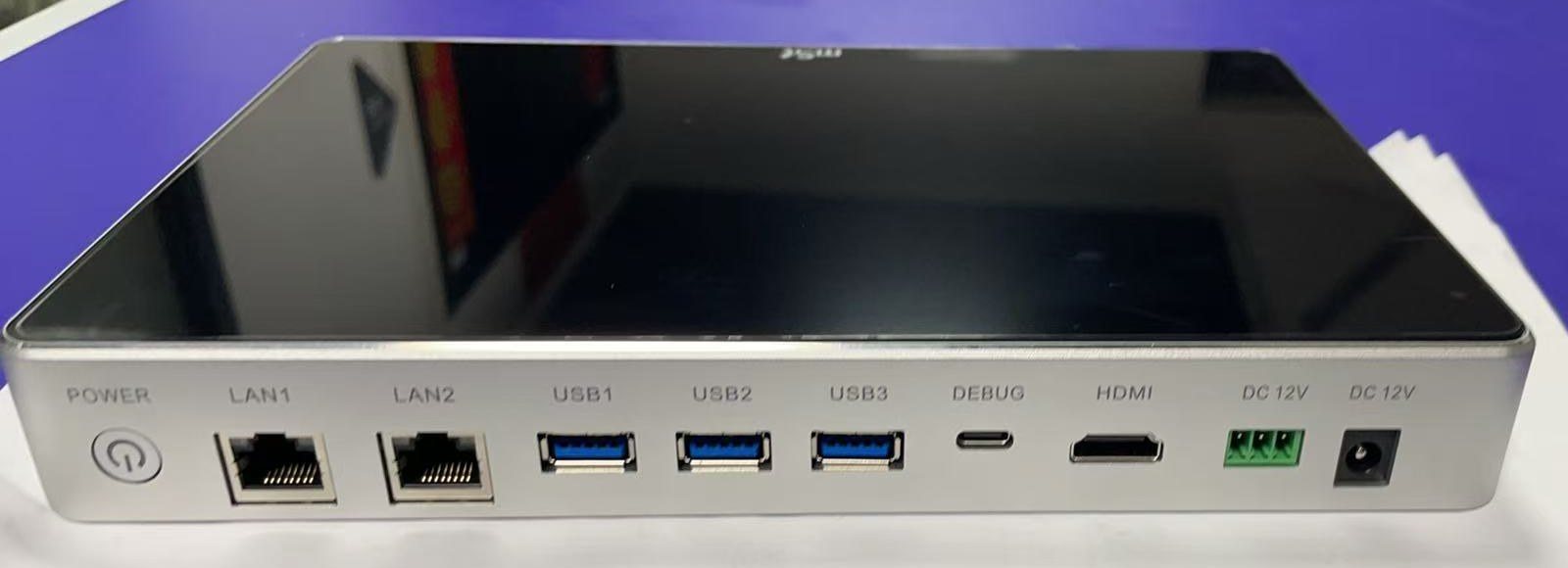

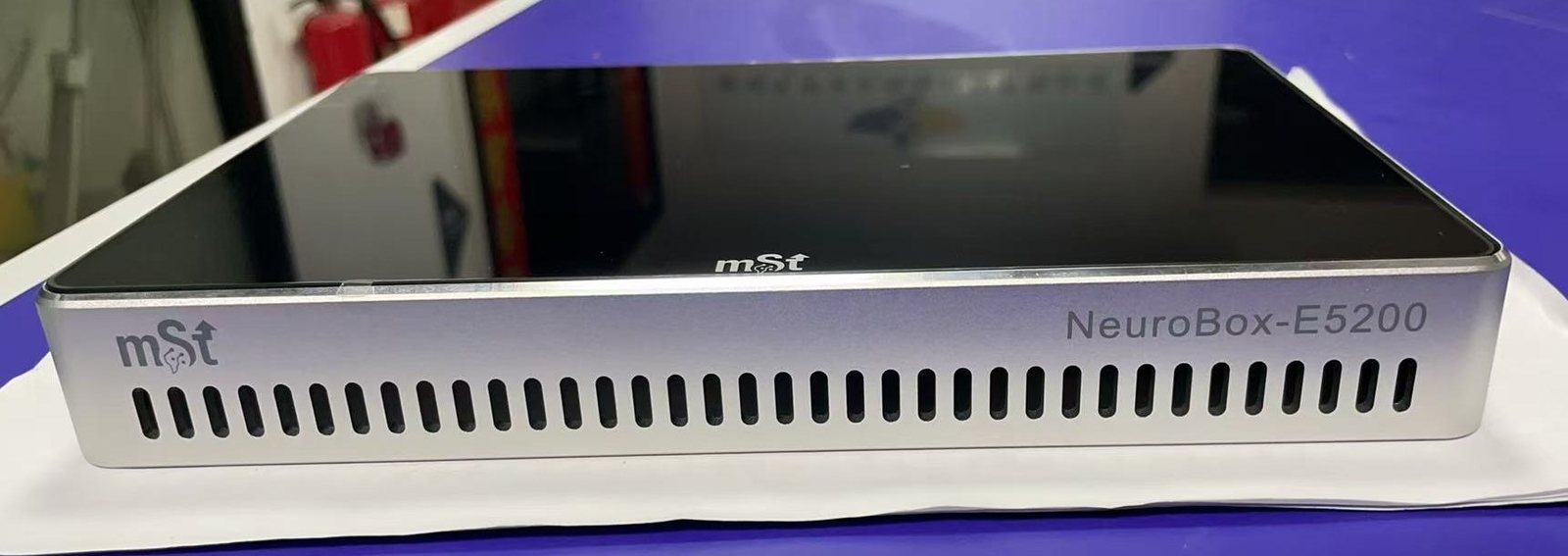

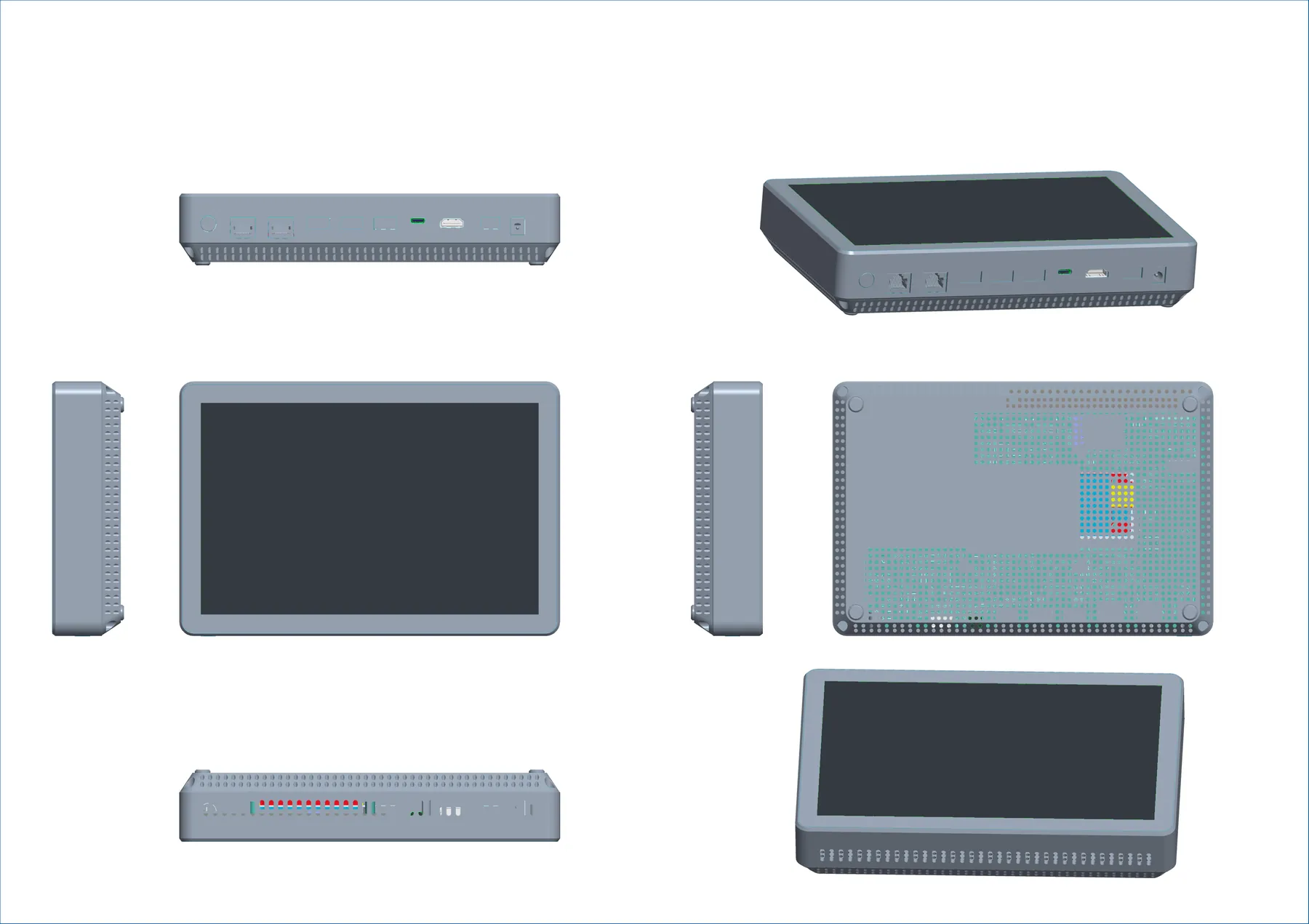

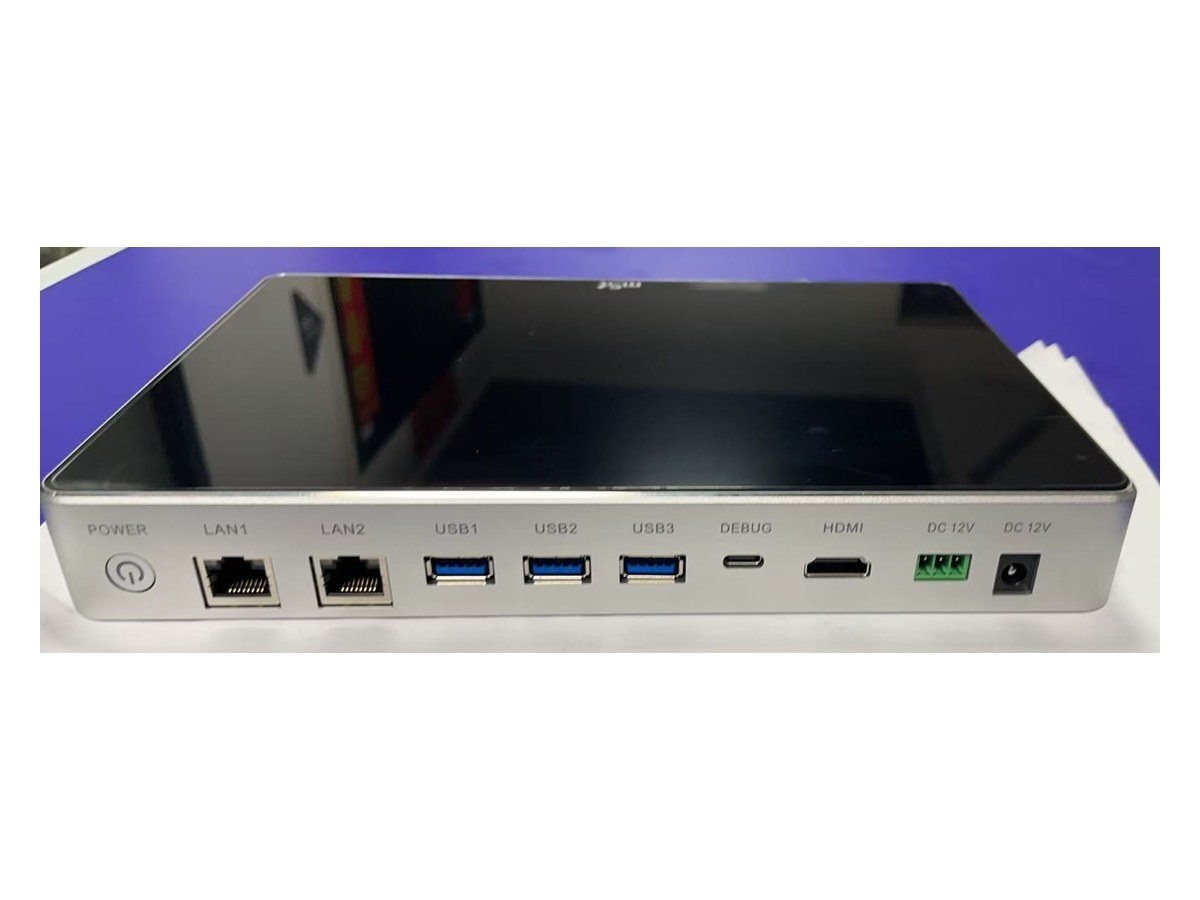

Product views
Specifications
| AI performance | INT8 up to 100 TOPS, FP16 up to 50 TFLOPS; SUPER mode for higher performance |
|---|---|
| Processor | NVIDIA Orin, next-generation Ampere-architecture GPU with CUDA cores, plus NPU compute units |
| Memory | 16 GB |
| Storage | 256 GB NVMe SSD fitted; M.2 slot supports larger drives |
| Display | Built-in 10.1-inch touch screen; HDMI output mirrors the screen |
| Networking | 2× independent 1000 Mbps Ethernet; Wi-Fi; Bluetooth 5.2 |
| USB | 3× USB 3.0; 1× USB Type-C for firmware upgrade and maintenance |
| Power | 12 V / 5 A DC input; 10–25 W adjustable power modes, up to 45 W |
| Operating temperature | -20 °C to +85 °C, industrial wide temperature |
| Dimensions | 244.7 × 163.4 × 44 mm |
| Software | Preinstalled Linux system; CUDA, TensorRT, OpenCV and ROS toolchains supported; SSH remote development |
| Lead time | Dispatched from Singapore within 2 weeks of order confirmation; delivery time depends on the destination and carrier |
| In the box | Neuro Box E5200 ×1, 12 V / 5 A power adapter ×1 |
| Warranty | 1-year warranty against manufacturing faults |
Where it fits
- Machine vision
Camera inspection lines, defect detection and counting at the station, with the touch screen as the operator panel.
- Robotics and AGV
On-board perception and planning with ROS, two LAN ports for sensors and the fleet network.
- Edge computing
Run models next to the equipment with a 10–25 W budget and no fan-cooled server room.
- Industrial and outdoor
Wide-temperature parts, 12 V DC supply and an industrial DC plug alongside the standard barrel jack.
Order form
Tell us where to ship and how many units. MST confirms the order, delivery date and invoice terms by email before anything is charged.
Minimum order: 1 unit · Dispatched within 2 weeks of order confirmation; transit time depends on the destination · Ships from Singapore · USD invoice · 1-year warranty
