Family	Application	Series	Size range	Inductance range	Values	Notes

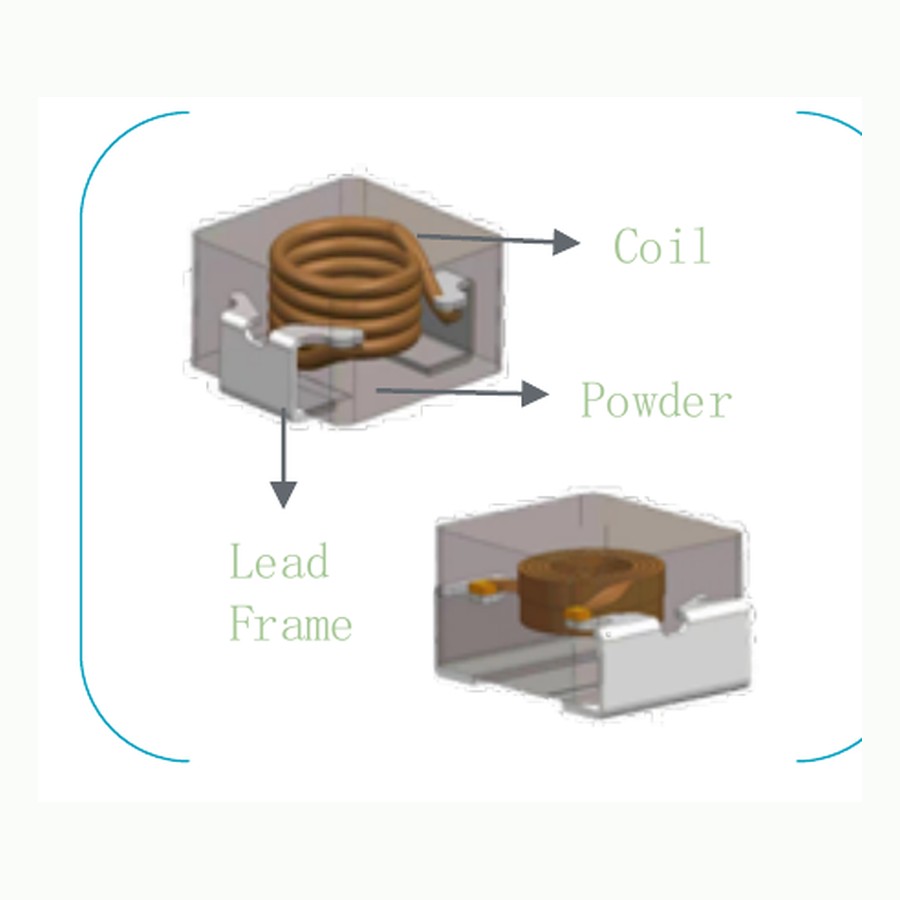

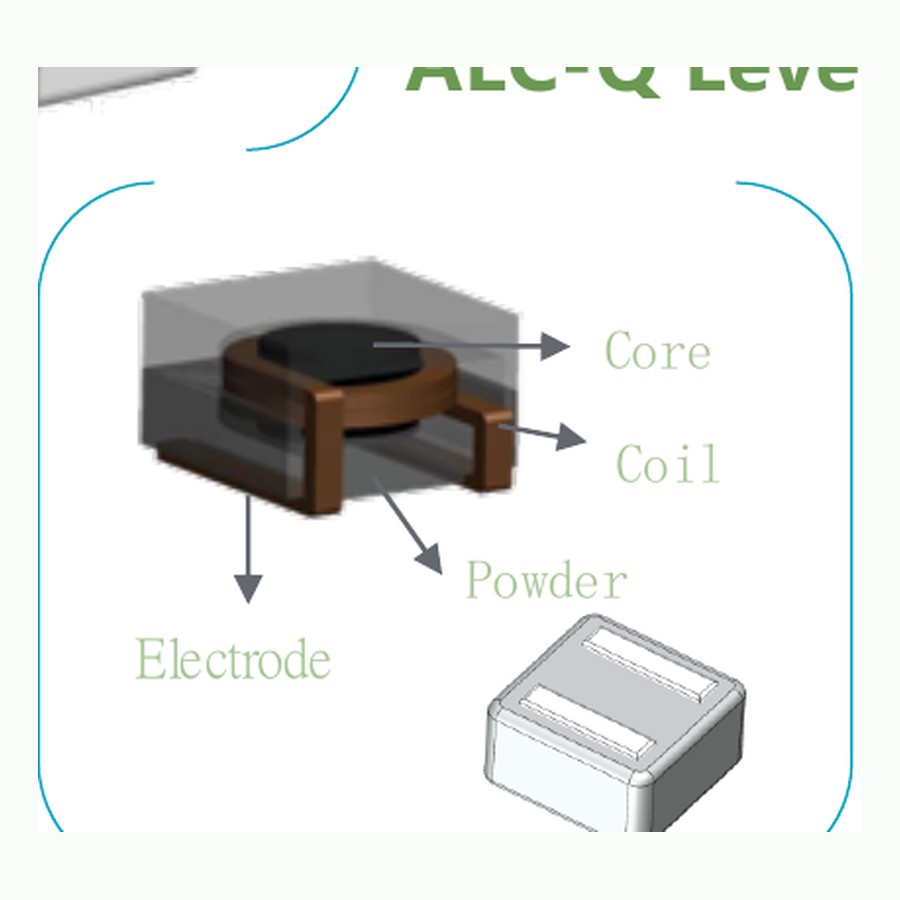

Automotive molded VCMA / MAWH	Powertrain, infotainment, lighting, audio, ADAS, BMS	201610, 201612, 252012, 322512, 322520, 0420, 0421, 0530, 0630, 0854, 1040, 1050, 1054, 1350, 1365, 1770	2.2 × 1.8 × 1.0 to 17.45 × 17.15 × 7 mm	0.10 to 68.0 µH	183 values	Automotive power and high-reliability inductors.
High-vibration automotive VCMC / VCMT	High-vibration, low-EMI, high-reliability automotive power	0630, 0754, 1040, 1054, 1365 alloy, 1365 amorphous	7.3 × 6.8 × 3.0 to 13.8 × 12.9 × 6.5 mm	0.47 to 100.0 µH	68 values	Shielded, low EMI, low DCR, high current.
Class-D Audio	Class-D amplifier output and supply filtering	0770, 0890, 1090	7 × 7.5 × 7.3 to 10 × 9.2 × 10.85 mm	10.0 µH and others	17 values	Low loss, small size, high current.
Light SEPIC / 1080 SEPIC	SEPIC conversion and low-ripple supplies	1080	10.0 × 10.0 × 8.0 mm	10.0 to 22.0 µH	3 values	High efficiency, small footprint, low EMI.

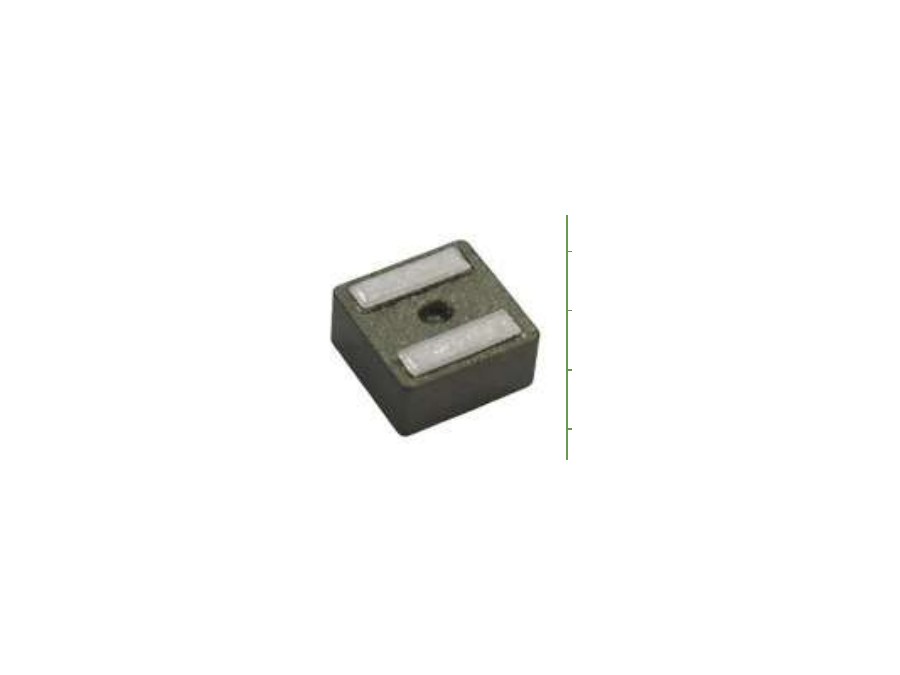

T-core VCMU / XAL / XGL	Compact high-current and module power supplies	0420, 0430, 0530, 0550, 0630, 0660, 0770, 0880, 1010	4.3 × 4.3 × 2.1 to 11.3 × 12.2 × 10.0 mm	0.16 to 22.0 µH	65 values	Select by space, DCR, Idc, Isat and temperature rise.

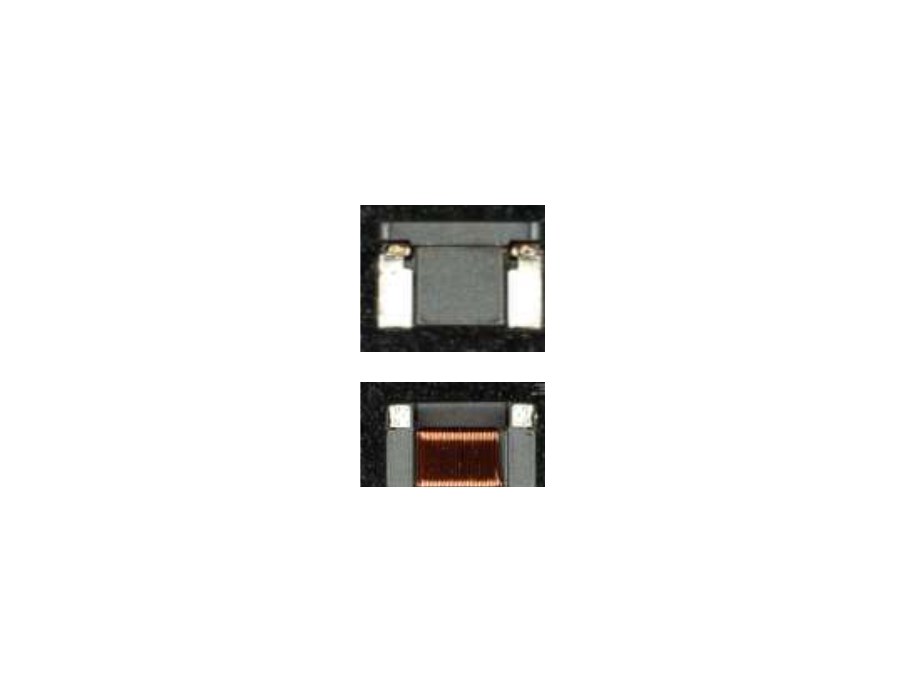

Common-mode chokes (plated / lead-frame)	Common-mode filtering, interfaces, supply noise	2012, 3225, 4532, 7060; lead-frame 3225, 4532	2.2 × 1.4 × 1.4 to 8.0 × 6.5 × 3.8 mm	By impedance / inductance	26 ratings	Select by band, impedance curve, DCR and package.

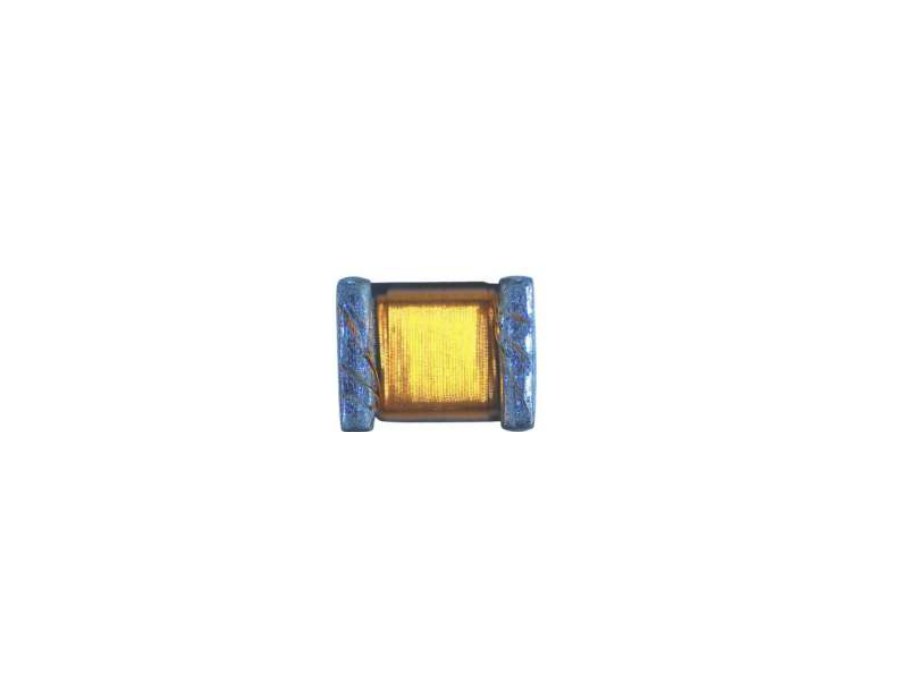

PoC series	Power over coax, automotive cameras and sensor links	3225, 2012	2.2 × 1.25 × 1.65 to 3.3 × 2.5 × 2.9 mm	0.47 to 47.0 µH	13 values	Wideband high impedance, low DCR, high Isat, high SRF.
NR series	General shielded power inductors: networking, consumer, industrial	3010, 3012, 3015, 4018, 4030, 5020, 5040	3.2 × 3.2 × 1.2 to 5.2 × 5.2 × 4.0 mm	1.0 to 220.0 µH	76 values	Select by cost, size and saturation current.

Don't know the part number?

Find the series by topology, current, DCR, height and EMI

The selector shows the series that fit and why.

Open the MAZO selector

Choose by application

Pick a use to see the parts that fit.

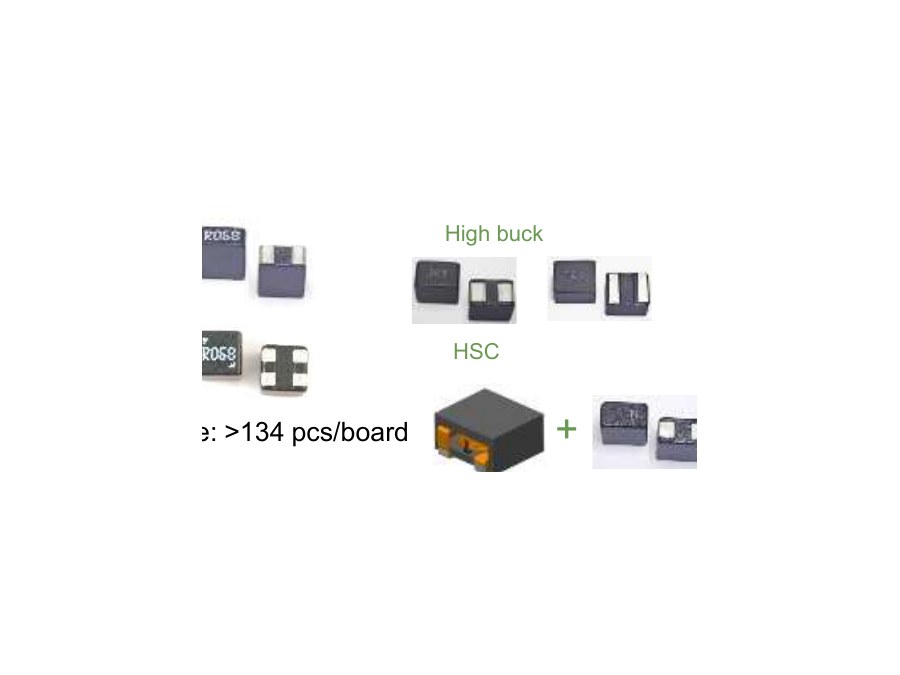

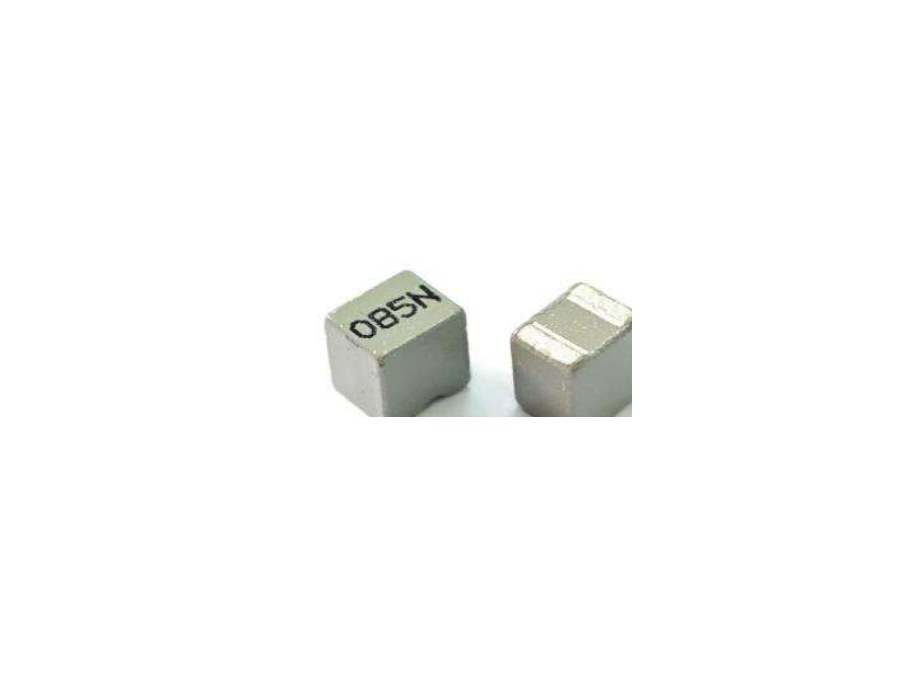

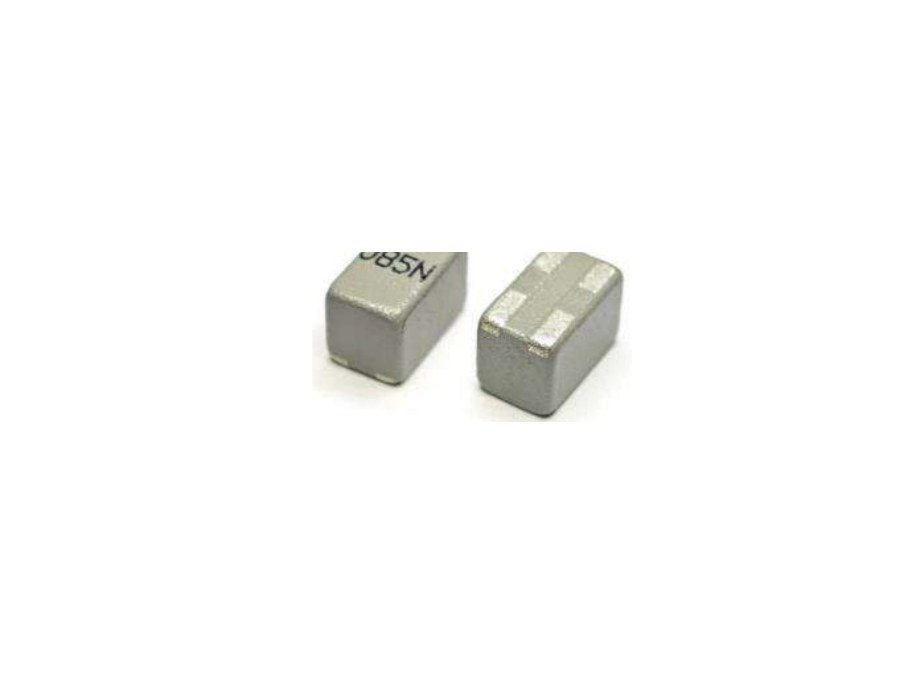

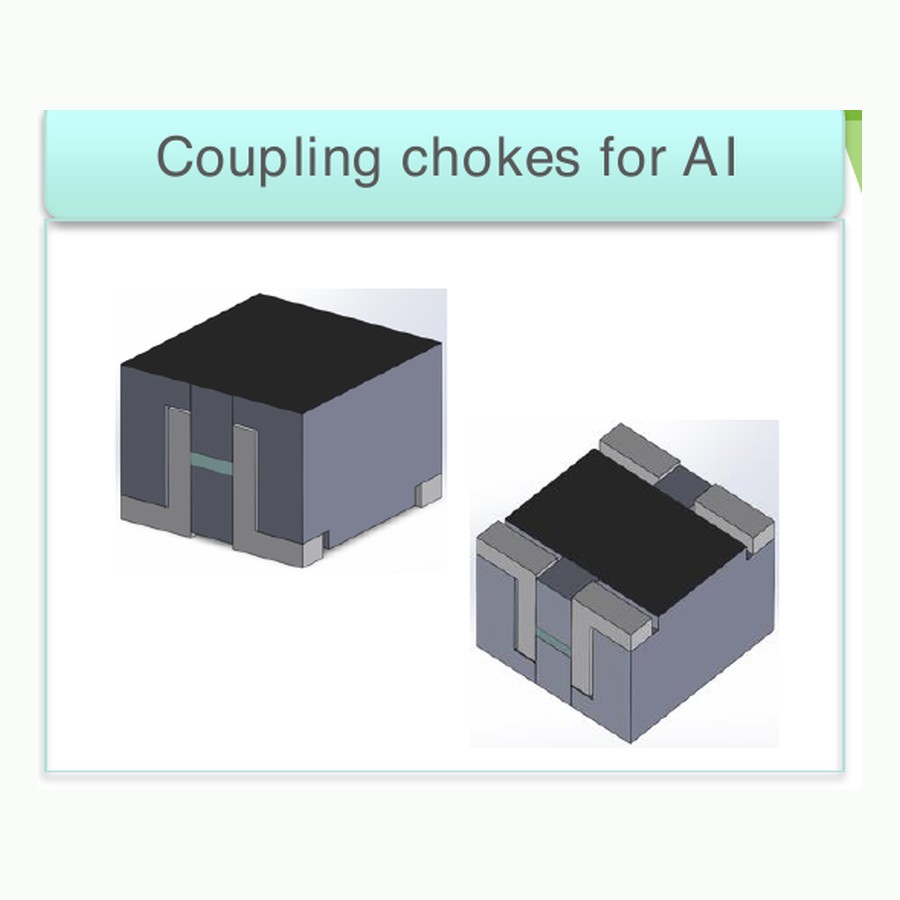

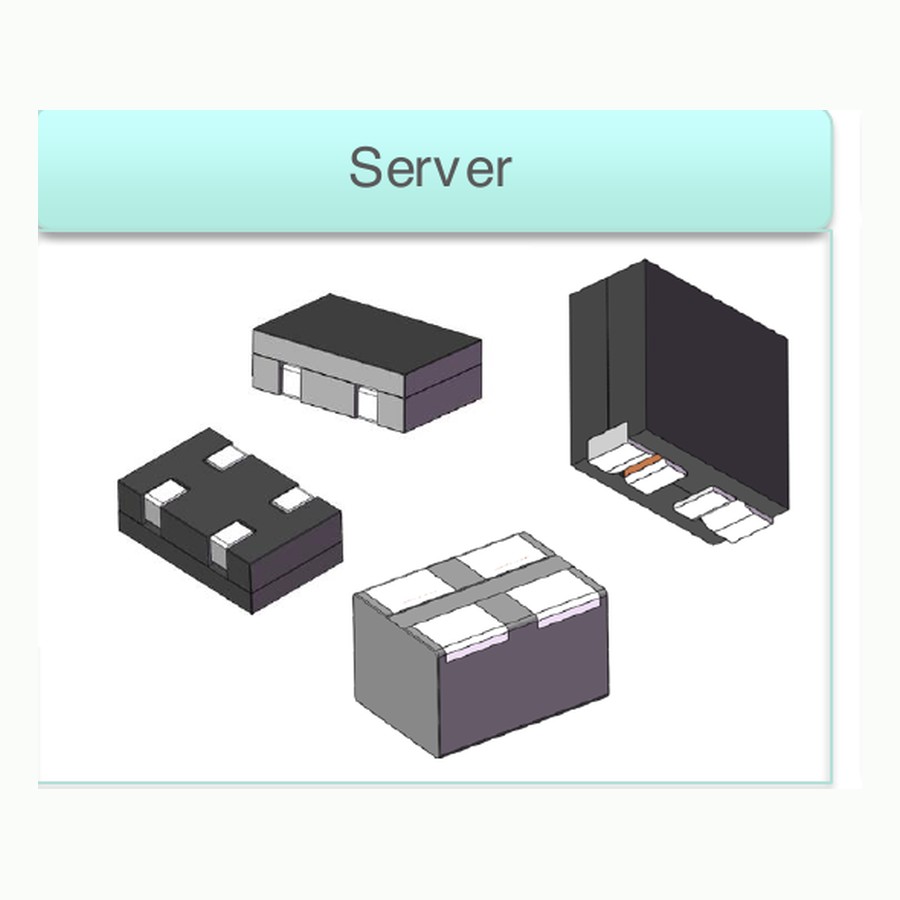

AI server / GPU VRM

AI server / GPU VRM power inductors

MAZO power inductors for GPU servers, accelerator boards, server V-core and high-current VRM power rails.

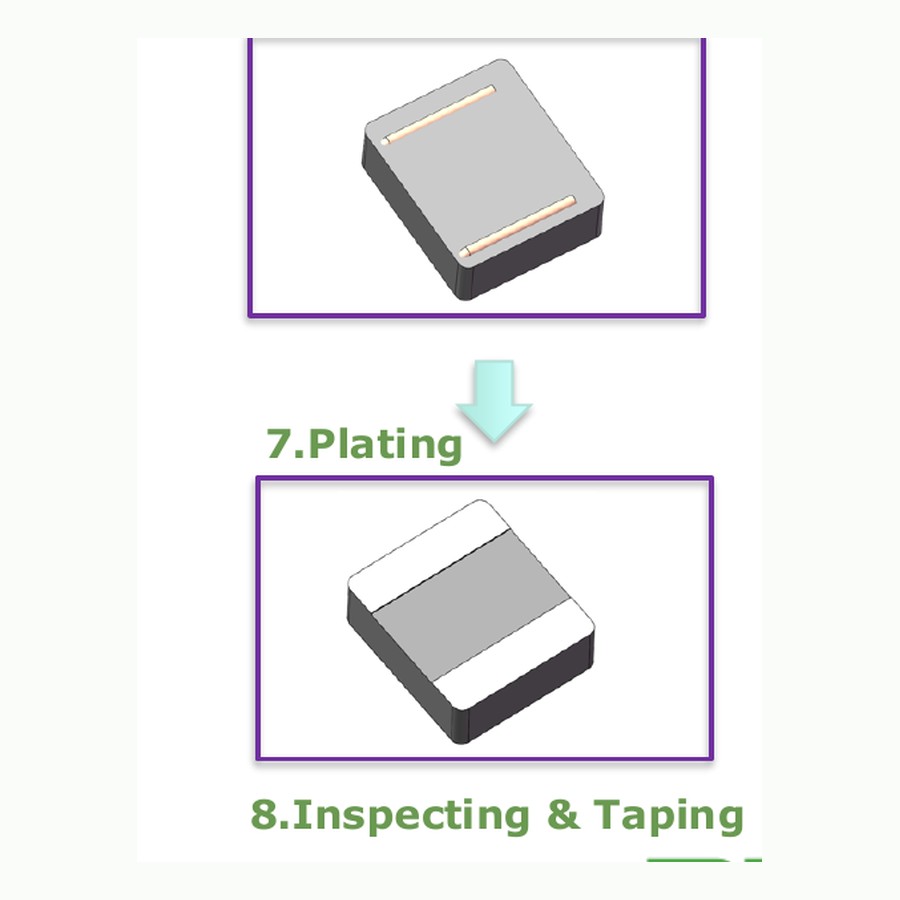

View partsAI-PC low profile

AI-PC low-profile power inductors

Low-profile MAZO inductors for compact AI-PC platforms, where height, footprint and current rating matter.

View partsWi-Fi 7 / networking

Wi-Fi 7 / networking power inductors

MAZO power inductors for routers, switches, access points, communications equipment and dense networking power rails.

View partsAutomotive / OBC

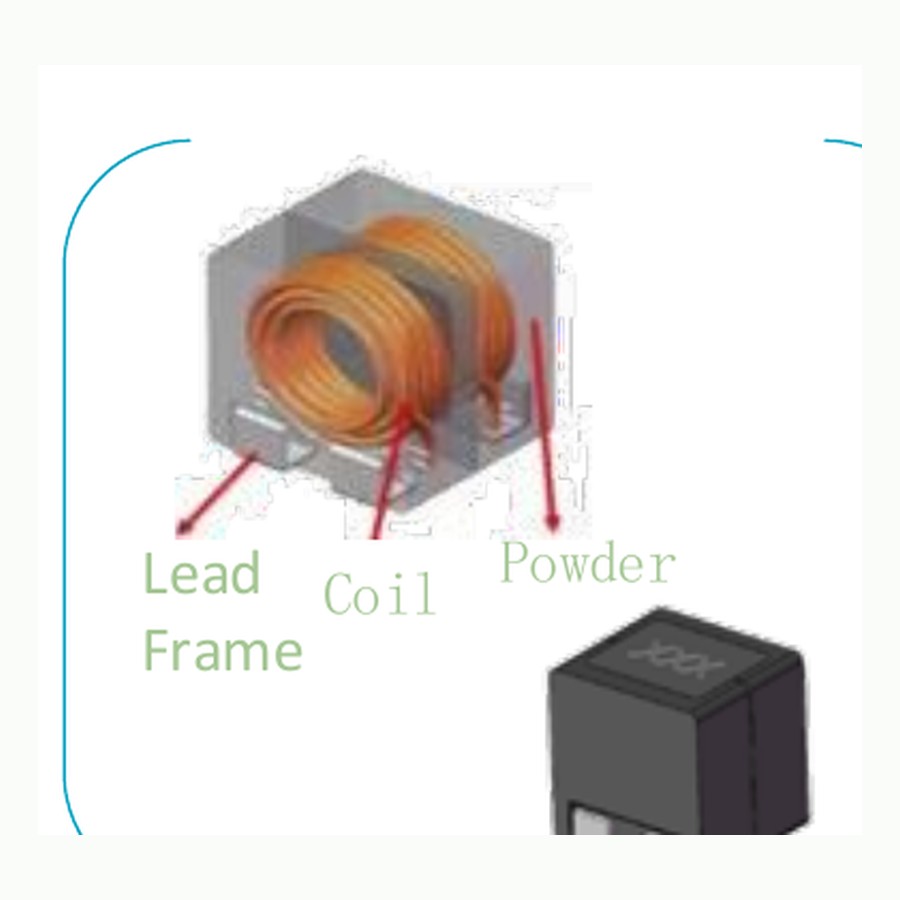

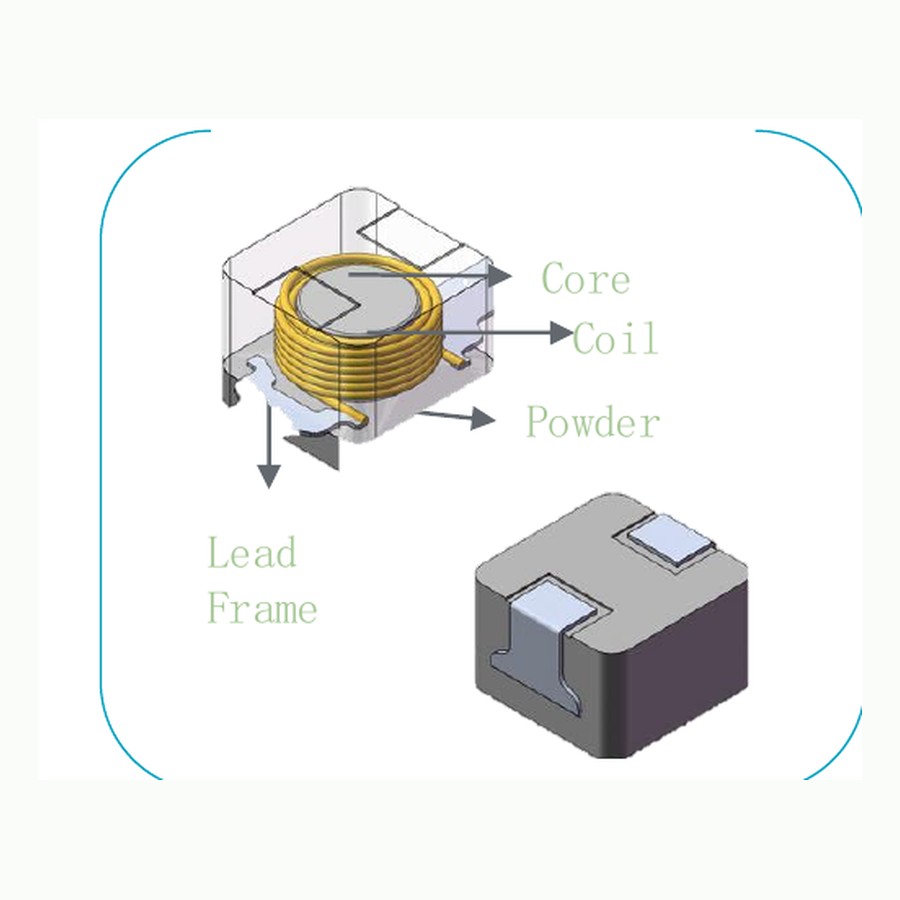

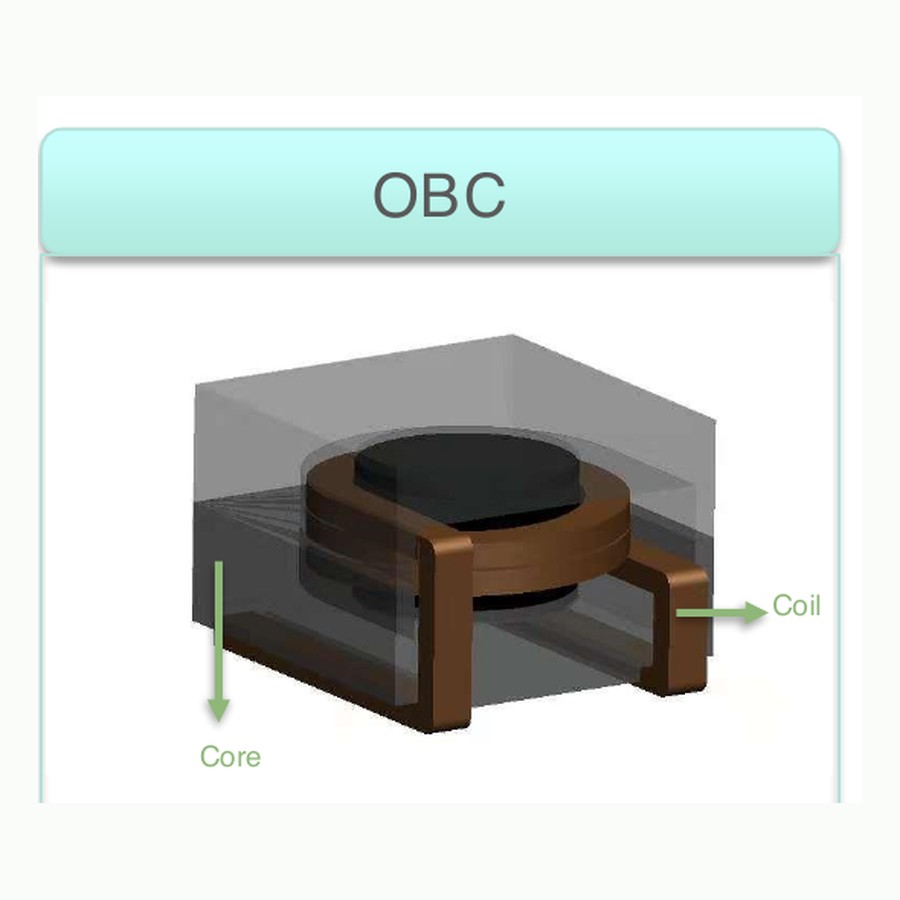

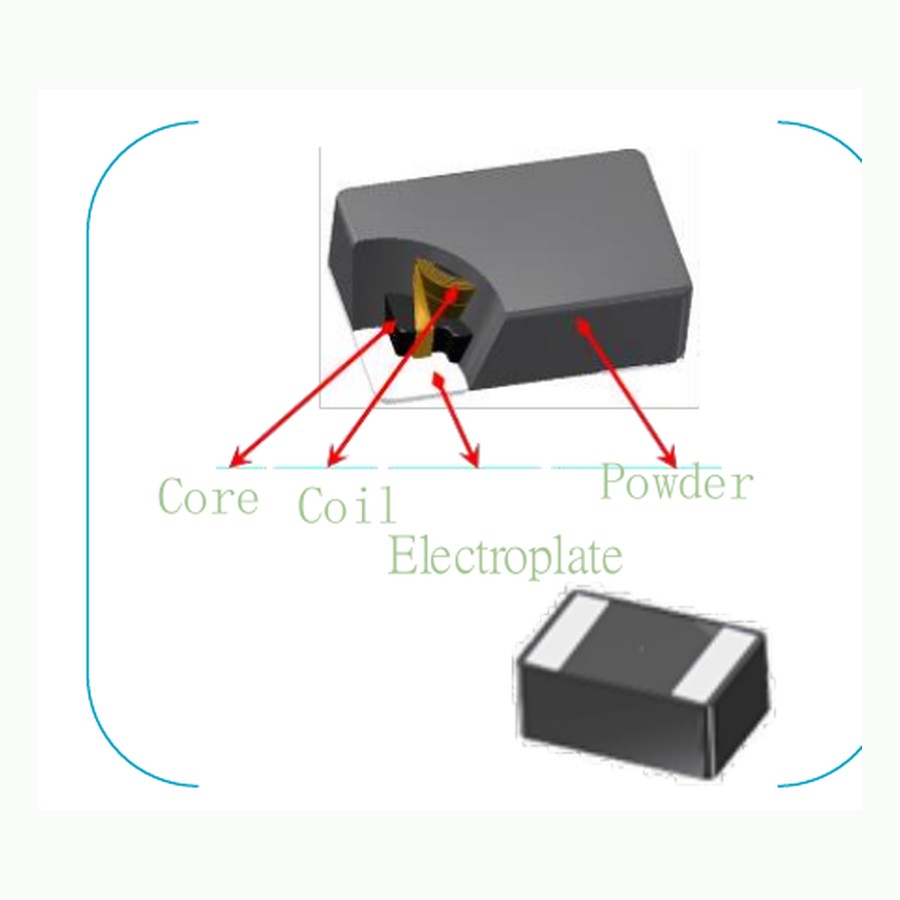

Automotive / OBC magnetic components

MAZO magnetic components for powertrain, ADAS, BMS, infotainment, lighting and 11 kW / 22 kW on-board chargers.

View partsAudio / SEPIC / EMI

Automotive audio, SEPIC, CMC, PoC and NR inductors

Power and EMI magnetics from MAZO: Class-D audio inductors, 1080 SEPIC inductors, common-mode chokes, PoC inductors and NR shielded inductors.

View parts

Product families

Pick a part from a product family

85 families · open one to choose an exact part number

PRODUCT FAMILYRepresentative image
